BOMA Survey

Temecula, CA

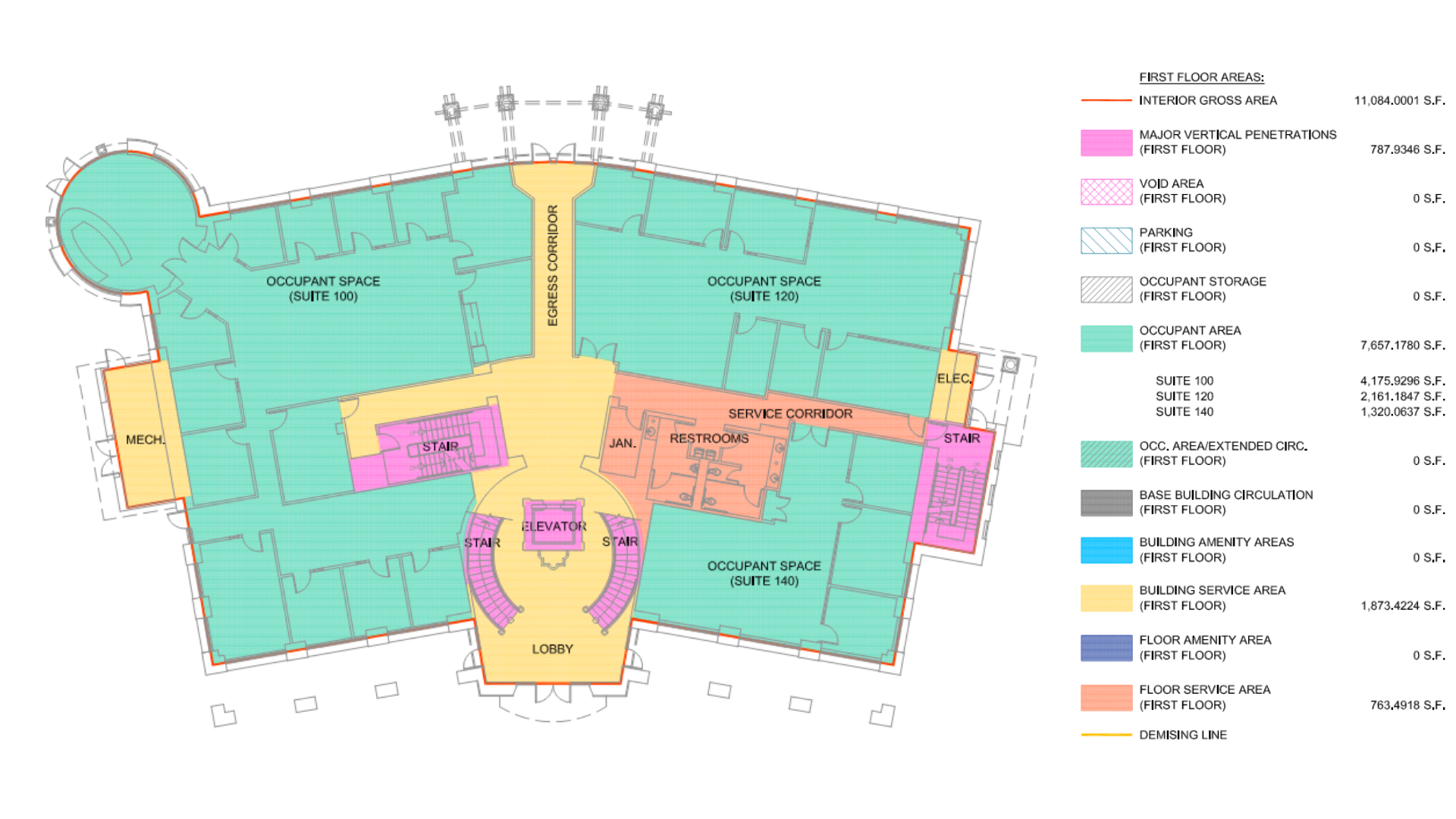

BOMA floor plan exhibit
press to zoom

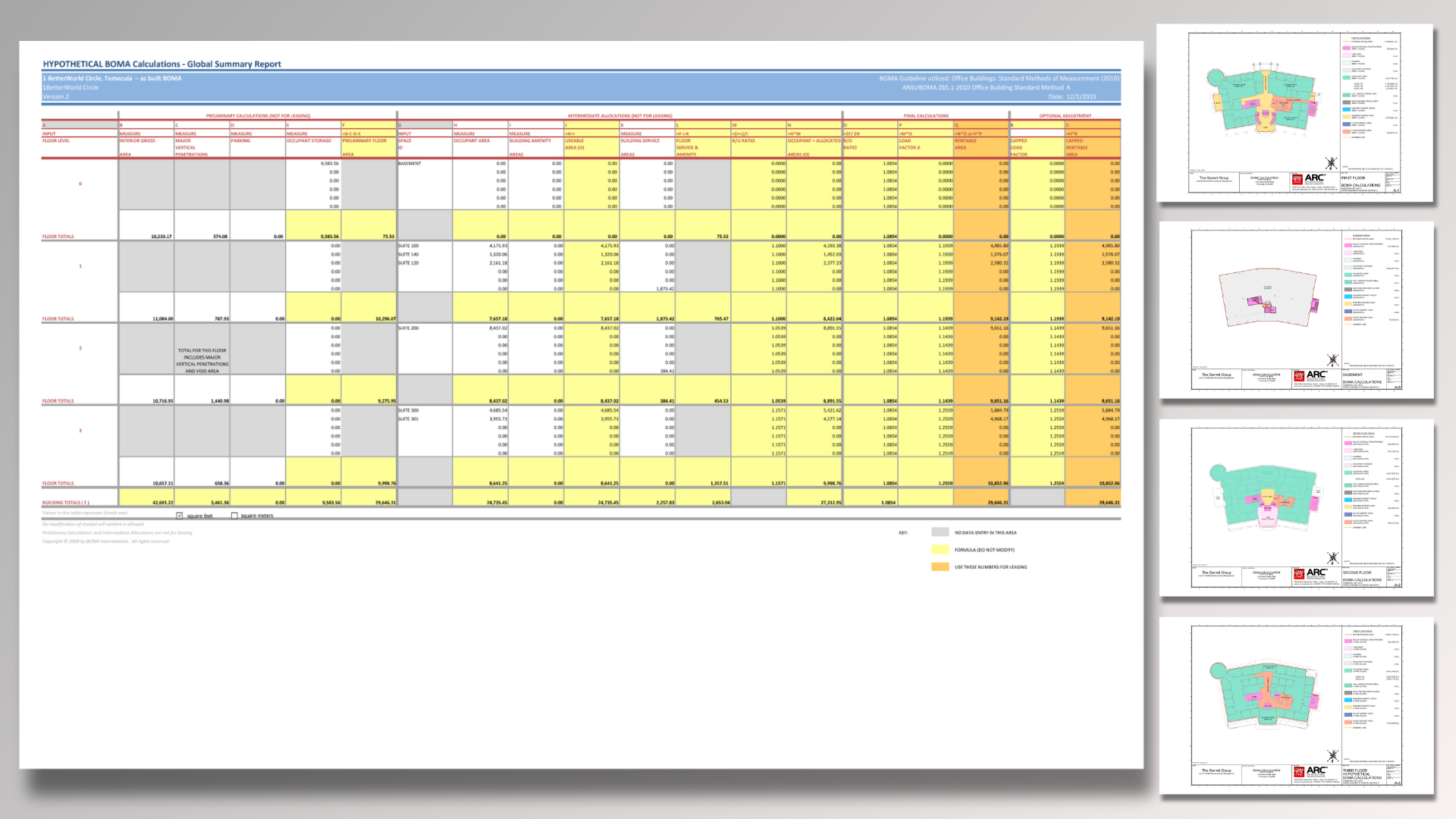

BOMA calculations
press to zoom

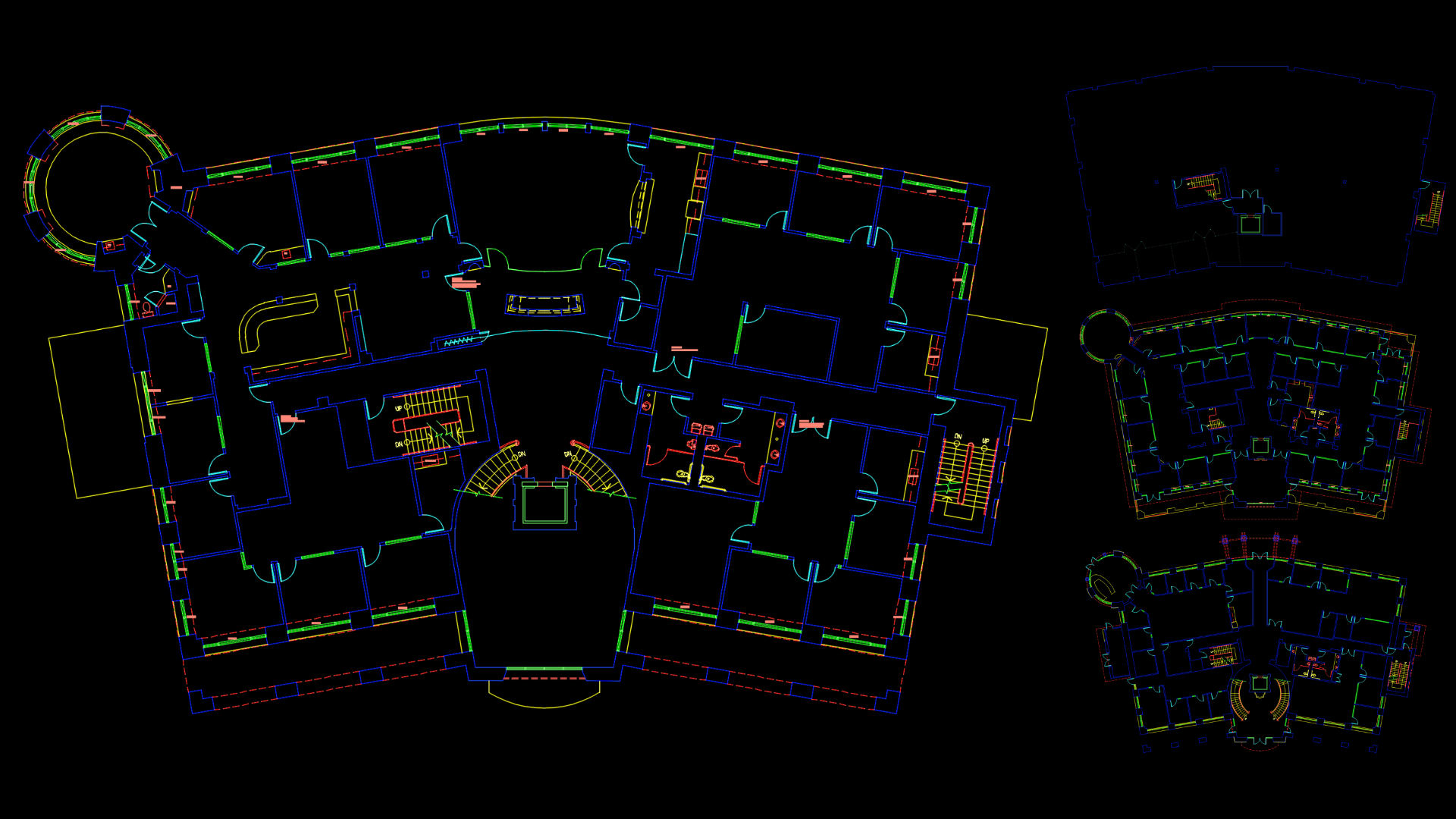

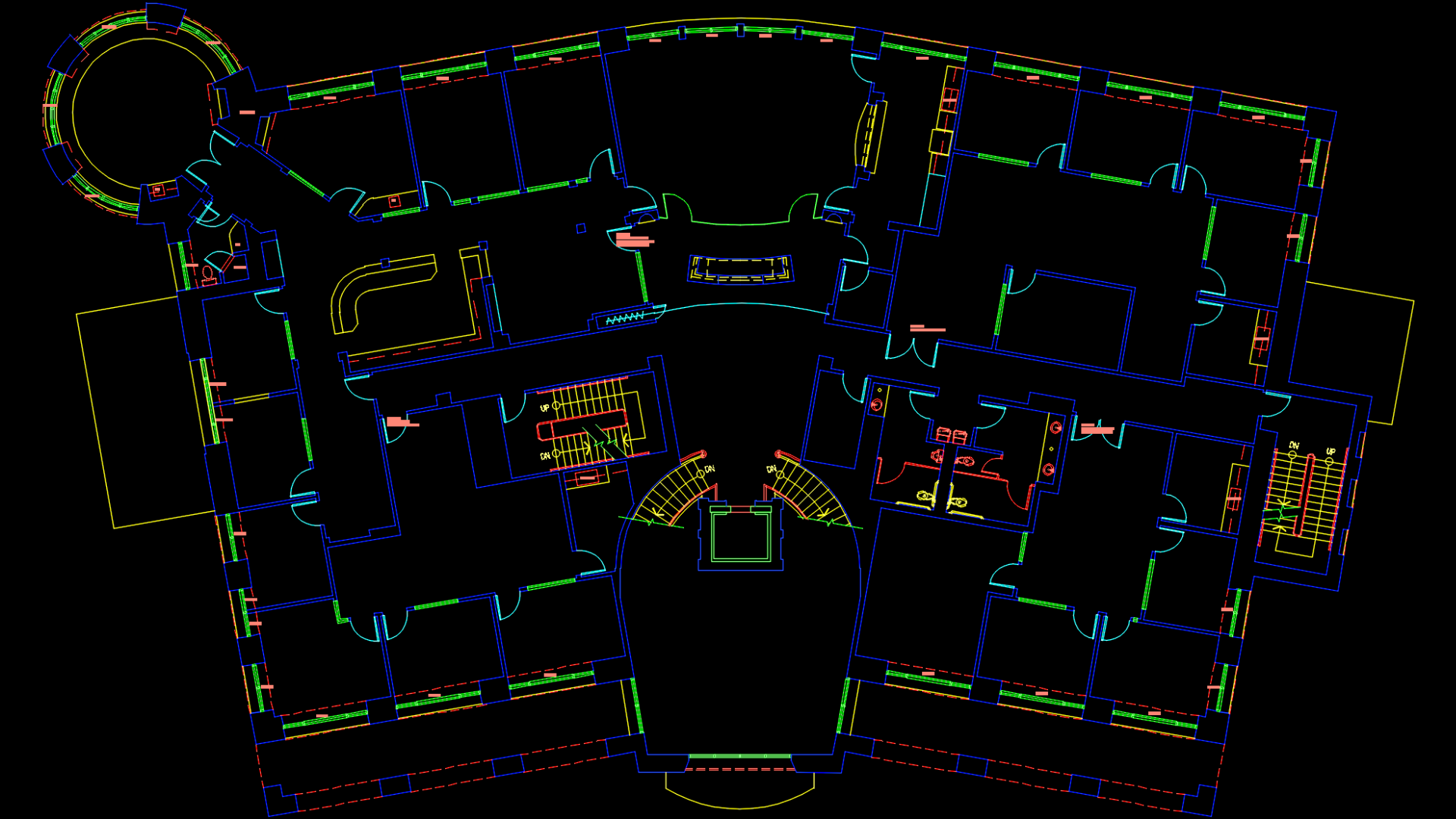

Floor plan
press to zoom

Project Square Footage

~ 29,646 s.f.

Market Sector


Project Type

Commercial Office

Year Completed


Architectural Resource Consultants (ARC) was hired to create an as-built BOMA of a three-story building located in Temecula, CA. The client was investigating changing the multi-tenant second floor to single-tenant and the single-tenant third floor to multi-tenant. In order to proceed with those plans, the client needed accurate measurements in order to ensure it maximized the rentable square footage.

The 2D as-built survey was performed using a Total Station Laser and Hand-held Laser Range Finders. All measurements were recorded in AutoCAD on site utilizing laptop computers for a very efficient process ensuring the accuracy of all measurements.

The 2D as-builts were then used to create area calculations using the ANSI/BOMA Z65.1-2010 Office Building Standard of Measure to determine the rentable square footage of each tenant space.

The items that were surveyed and represented in the as-built included the walls, doors, windows, casework and plumbing fixtures, fire risers and vertical circulation.
